BLDC Solar Water Pumps

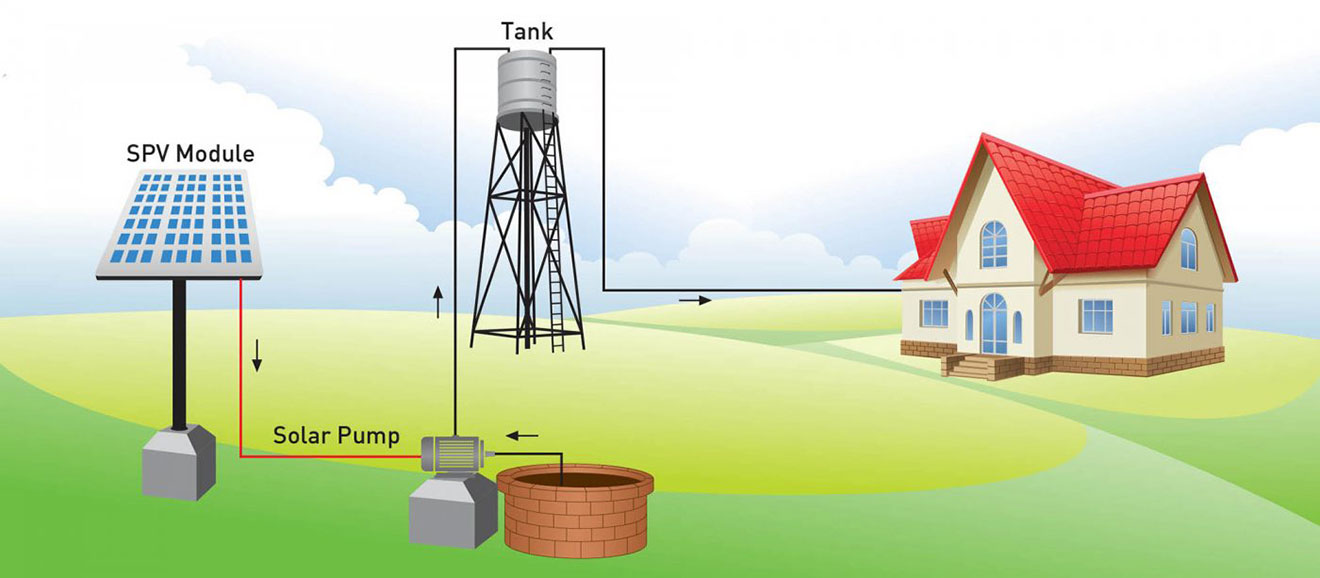

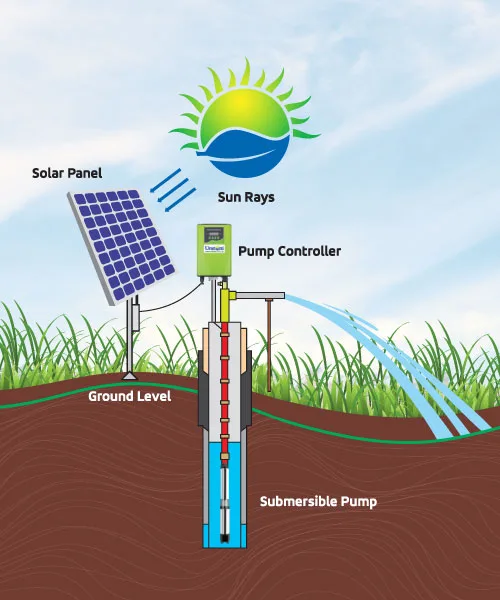

Uratom Solar Water Pumping Systems is a stand-alone system operating on power generated by Solar Photovoltaic Panels. The power generated by Solar Panels is used for operating Solar Submersible Pumps for lifting water from an open well, water reservoir or tube well for irrigation and drinking water purpose. The system requires a shadow-free area for the installation of the Solar Panels.

The beauty of using photovoltaic (PV) panels and a BLDC solar water pump is you get water delivery when you tend to need it most when the sun is shining full blast! A solar water pumping system is ideal in remote locations where there is uneven or no grid electricity availability.

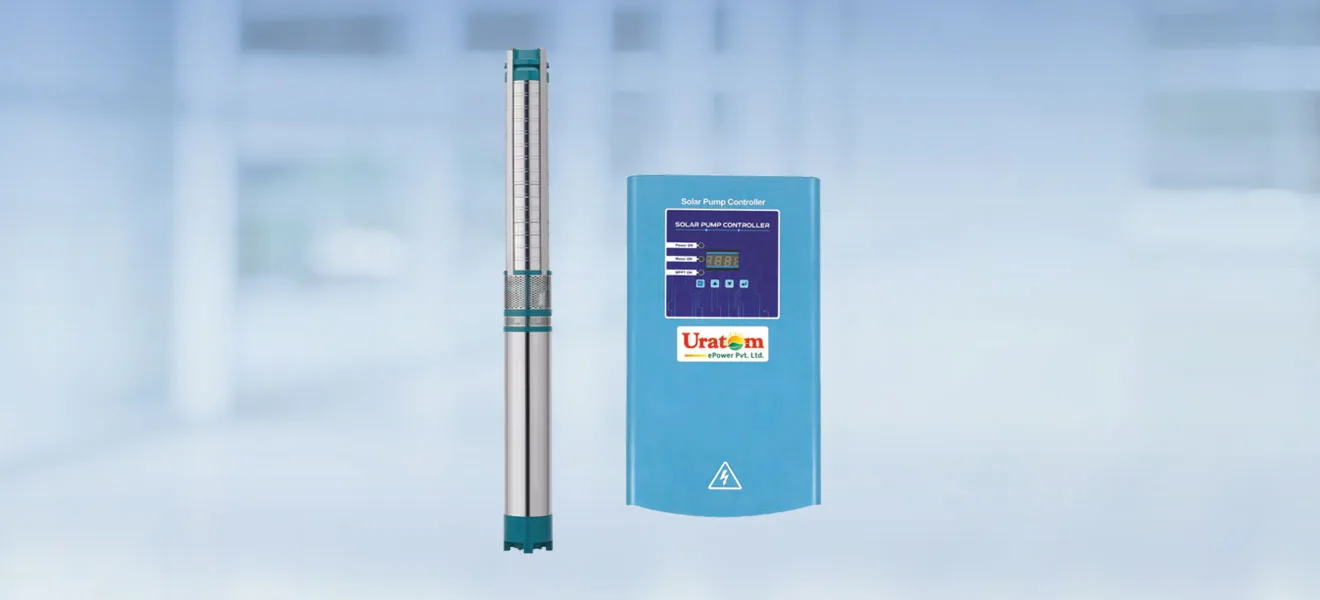

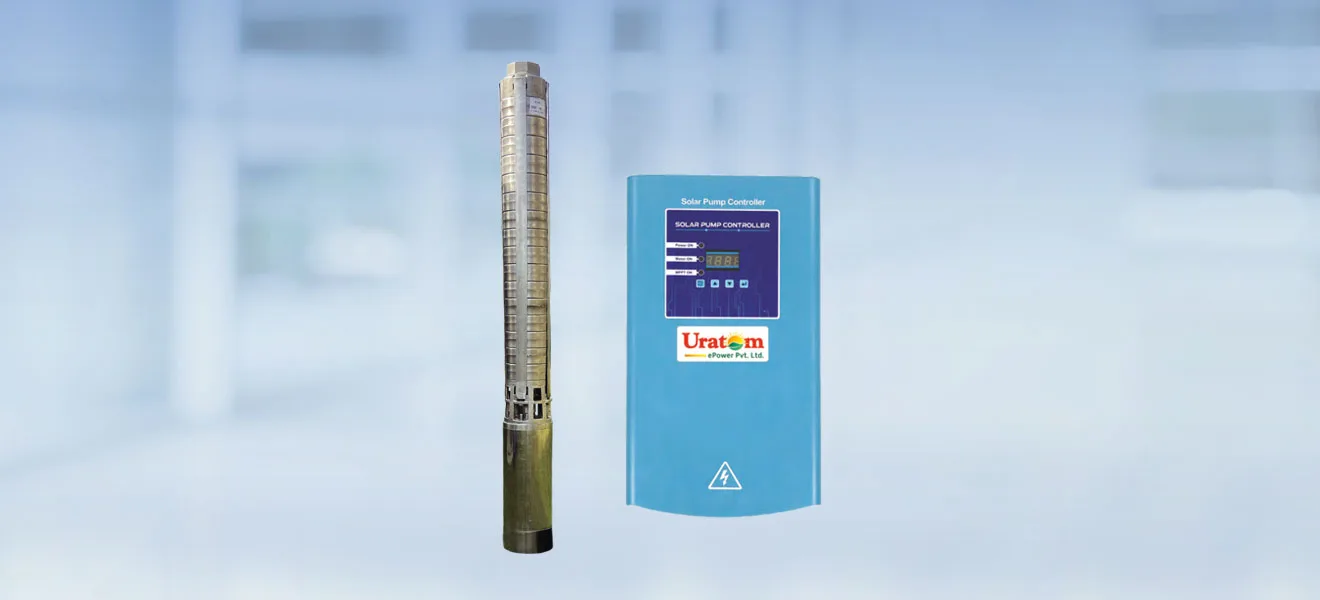

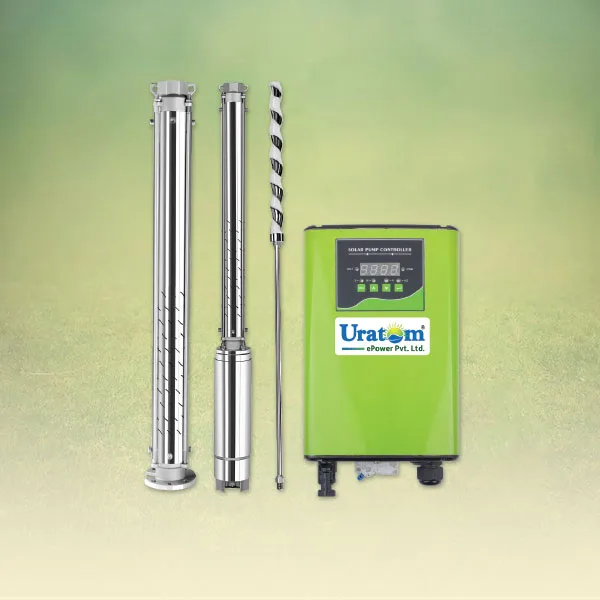

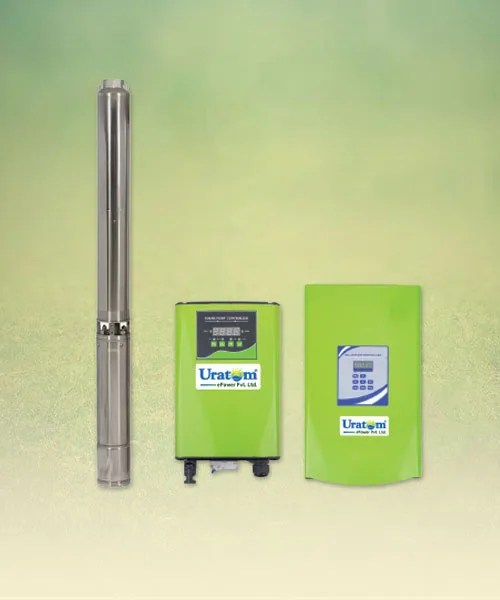

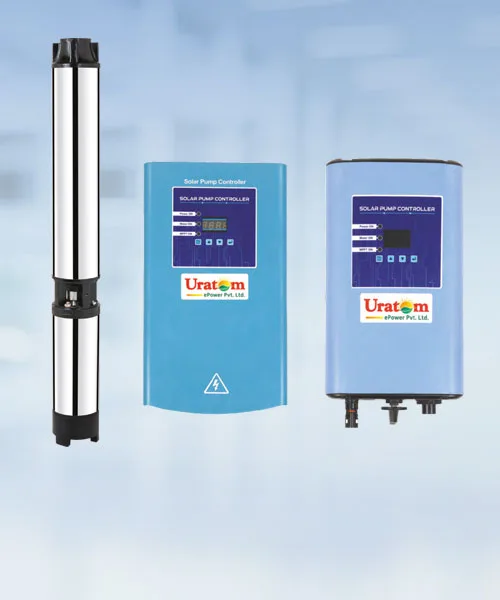

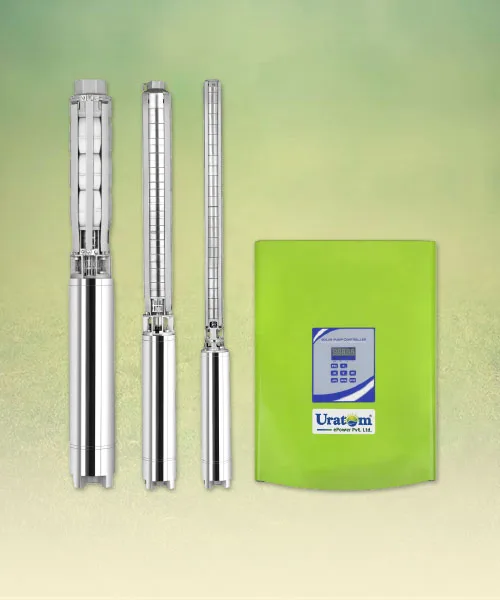

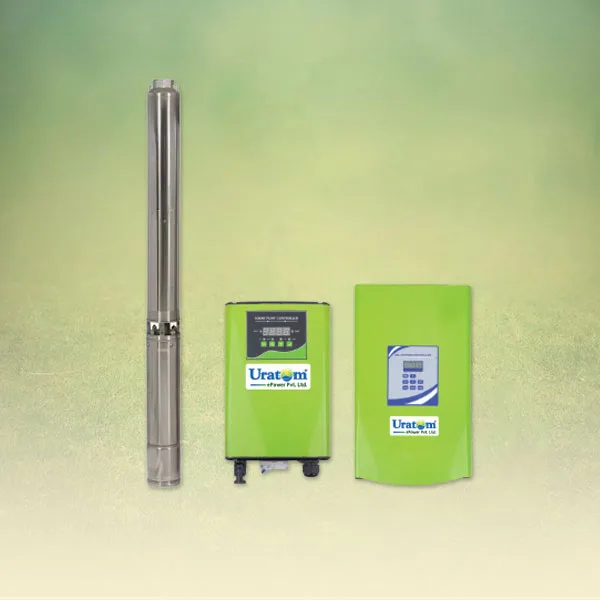

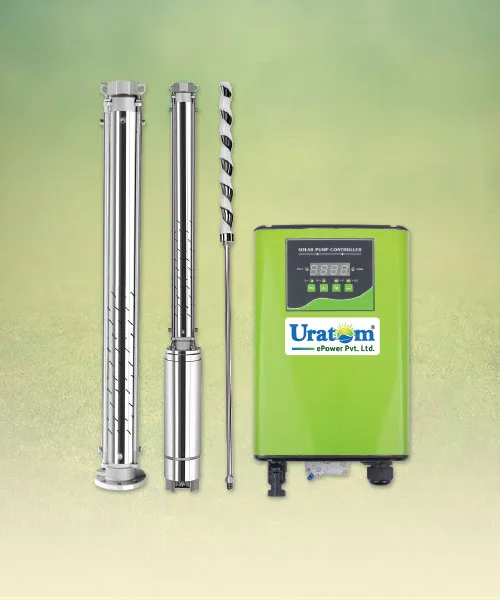

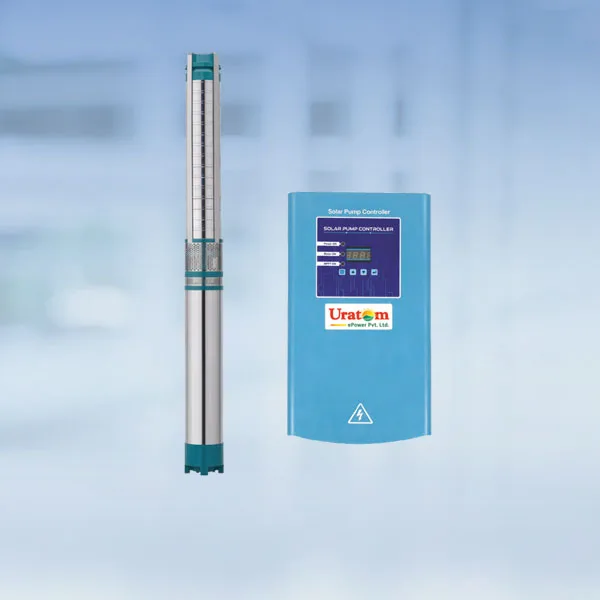

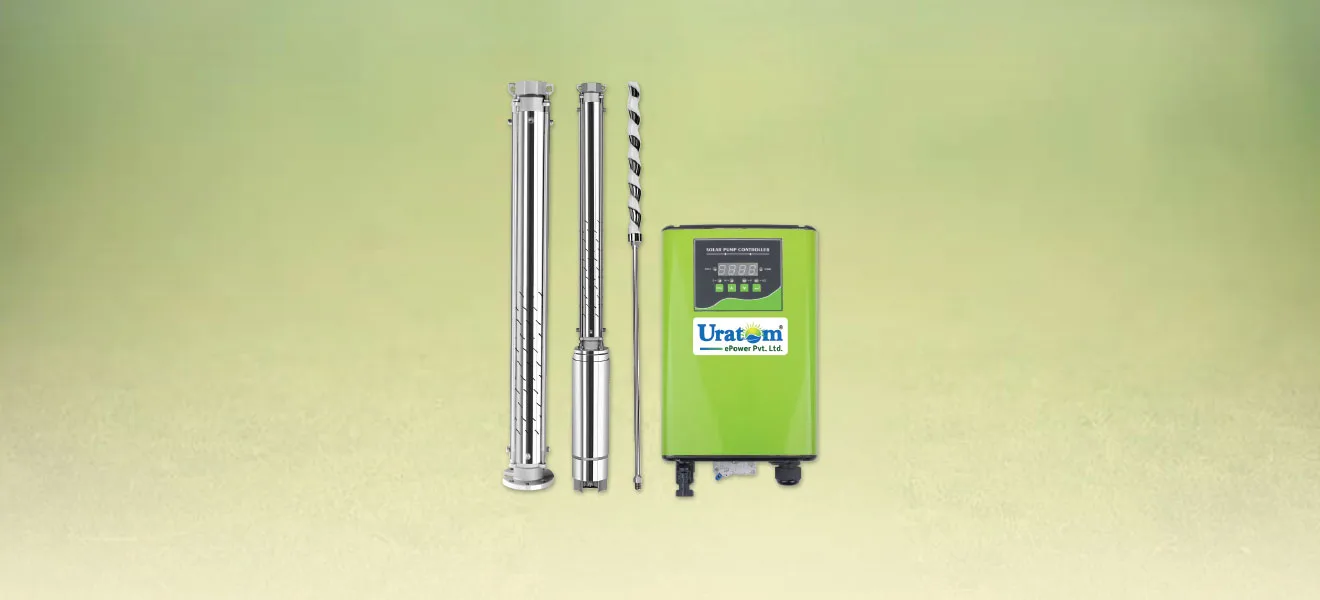

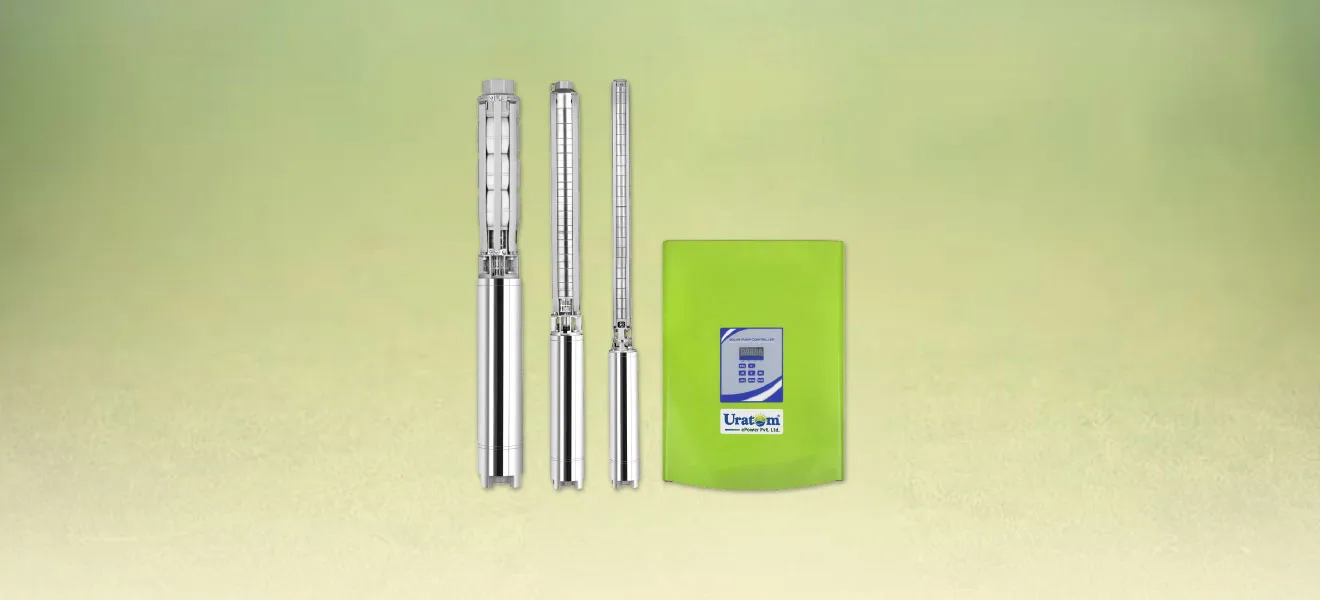

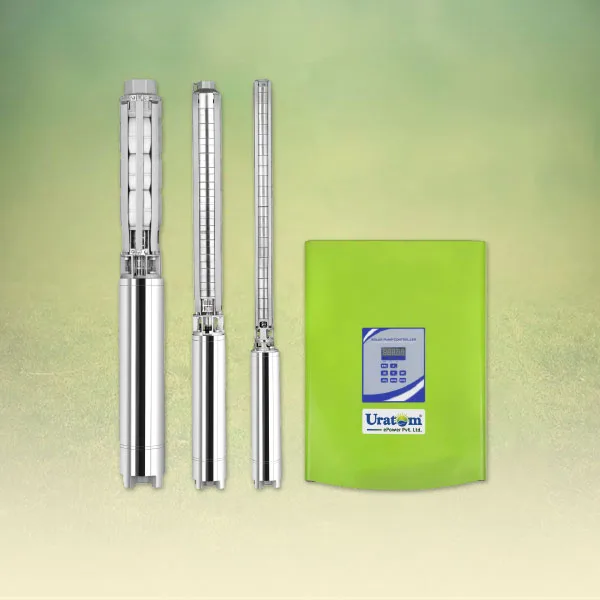

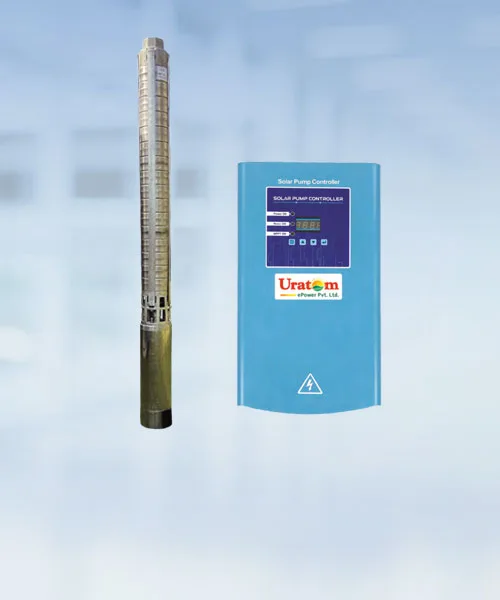

Available Range: V3, V4, V6 (0.25 Kw to 20 Kw) CI/SS Solar Submersible Pump

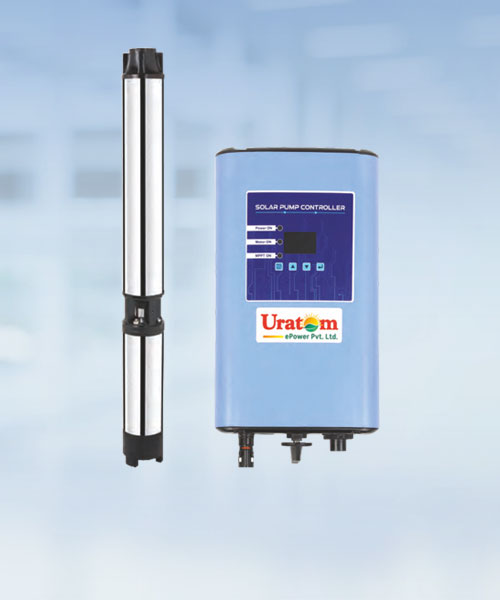

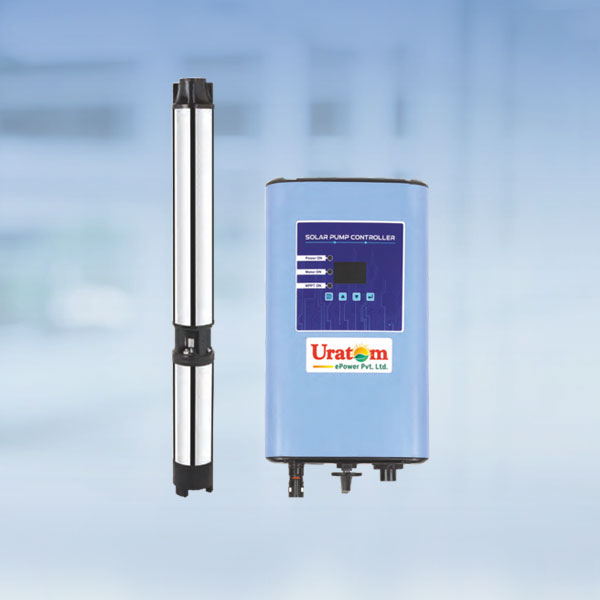

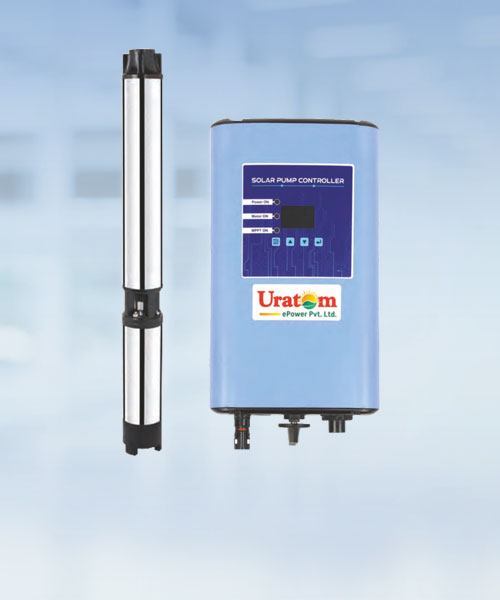

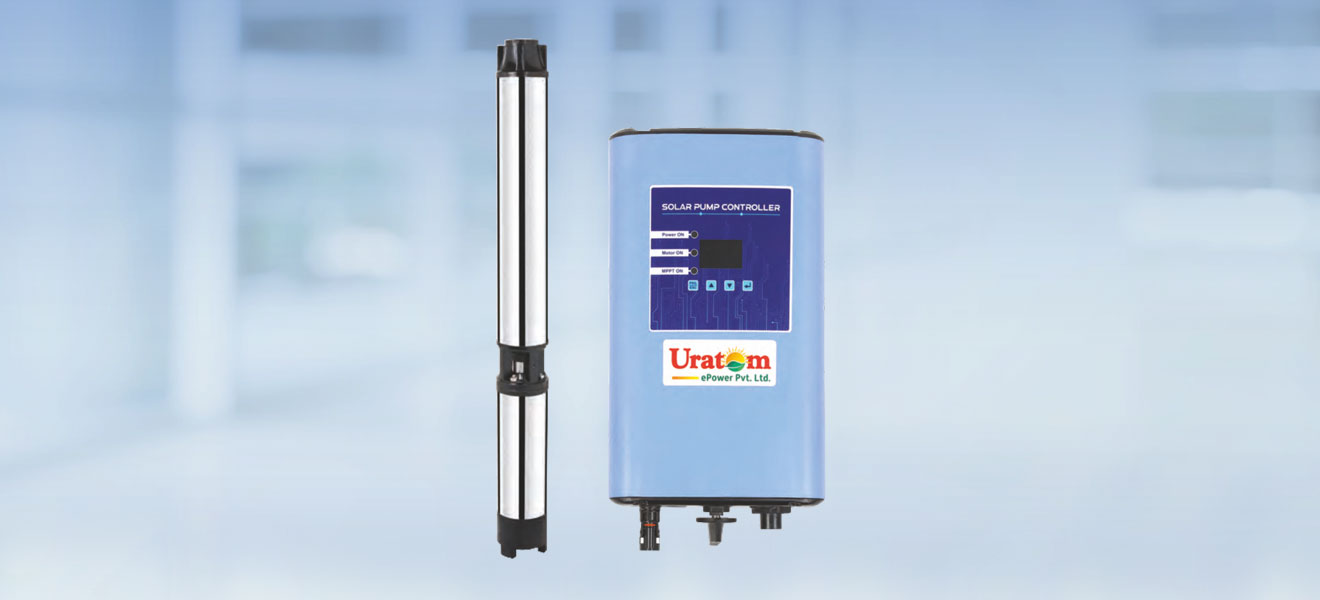

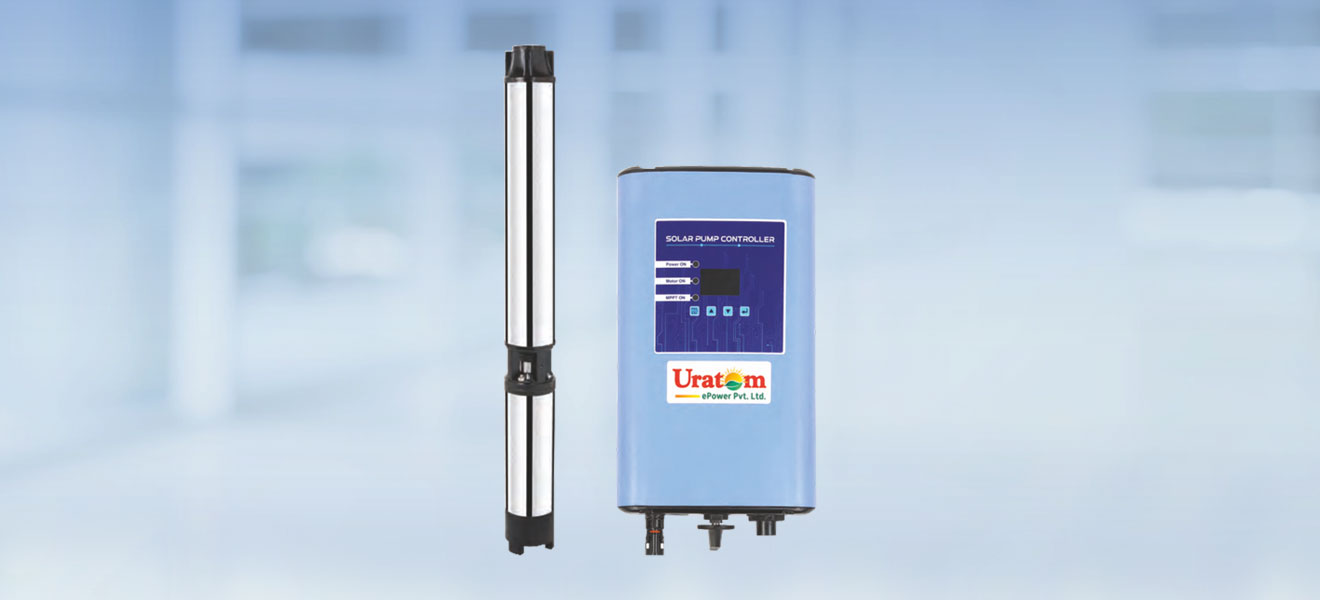

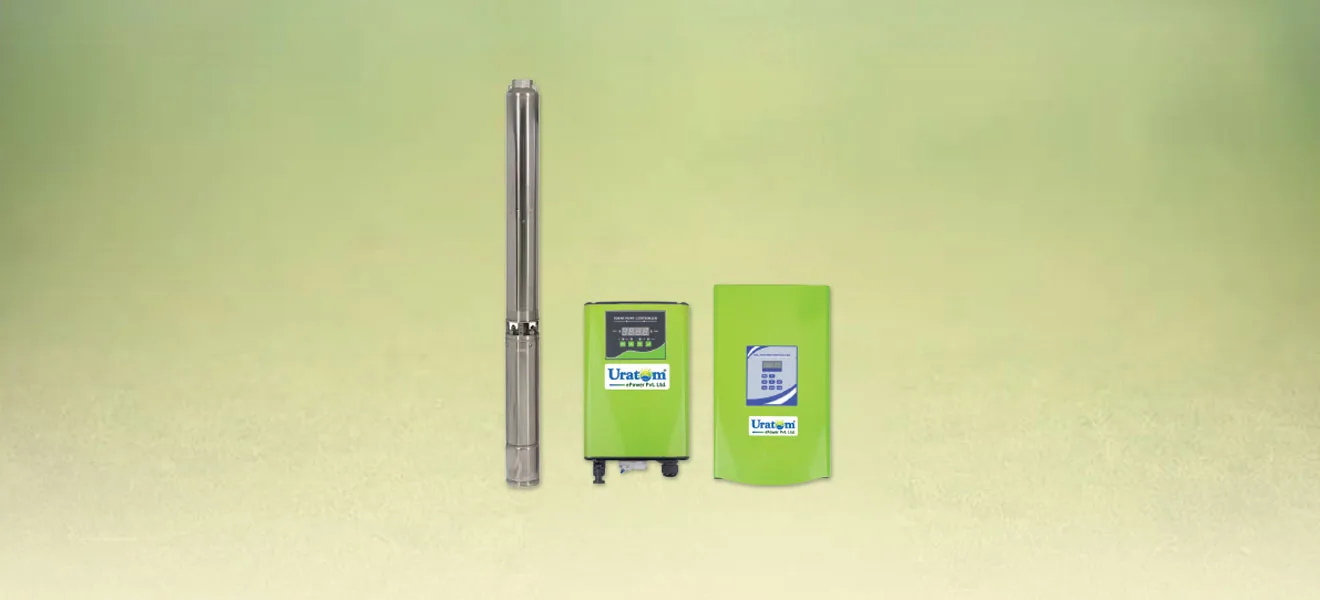

V3-3H Solar Submersible Pumps

V3-3H Solar Submersible Pumps – BLDC/PMSM

Cast Iron Helical Rotor Type

Uratom has a specially designed water-filled 6 pole BLDC/PMSM Cast Iron submersible motor and Helical Rotor pump with maximum utilization of solar energy during sunny days, BLDC PMSM motor set has 30% higher energy efficiency than conventional ac submersible pump. V3-3H series is suitable for 3.5″ or above bore well dia.

18 slot 6 pole Patented design
V3-3H is a special design with Cast Iron for longer life
Use of high-grade CRNO stamping for higher efficiency
Use of NdFeb neodymium magnet with NICKEL and marine grade coating for corrosion-free long life
NEMA motor coupling

Technical Specifications – V3-3H

Sr. No.	Watt	Model	Head in Mtr.	Shut off Head in Mtr.	Flow Rate in LPM	Outlet in Inch Outlet	Rated Voltage Rated	Solar Power Require
1	250	3H-0250	20	30	15	1″	24	335 W
• Water Filled BLDC/PMSM Motor • Higher 3150 RPM • HP Range 0.25 HP

Material Description

Sr. No.	Parts Name	Material
1	Motor Base	Casting Iron
2	Motor Upper Housing & Lower Housing	Casting Iron
3	Pump N.R.V	Casting Iron
4	Pump Suction	Casting Iron
5	Impeller	SS Helical Screw

Special Features of Solar Power Pump

Highly Reliable
Optional Manual Tracking
Robust Design and Construction
Simple Installation and Maintenance
High Efficient Solar Hybrid Inverter for AC Submersible Pump

Benefits

Eco – Friendly
Long Operating Life
Highly Reliable And Durable
Easy to Operate and Maintain
No Conventional Grid Electricity Required
No Fuel Cost – Uses Abundantly Available Free Solar Energy

System Components

Solar Photovoltaic Panels
Stand & Accessories

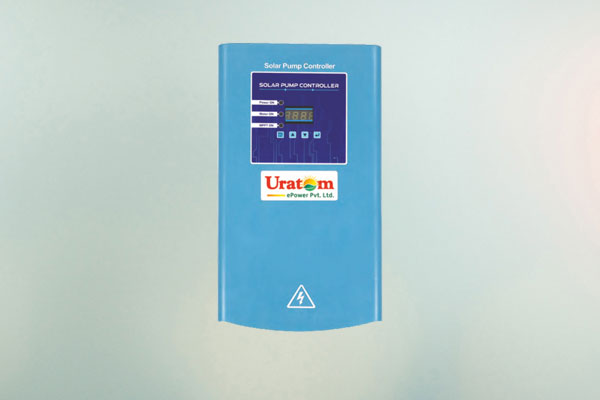

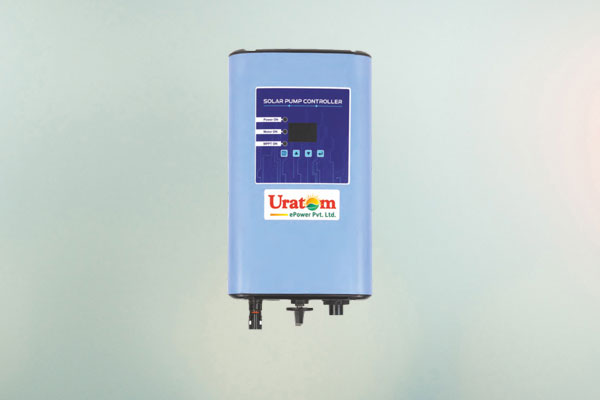

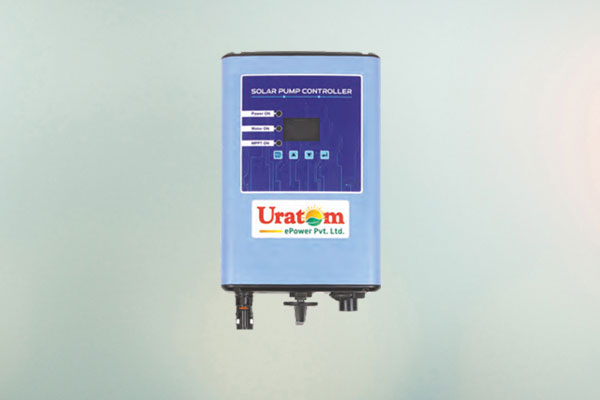

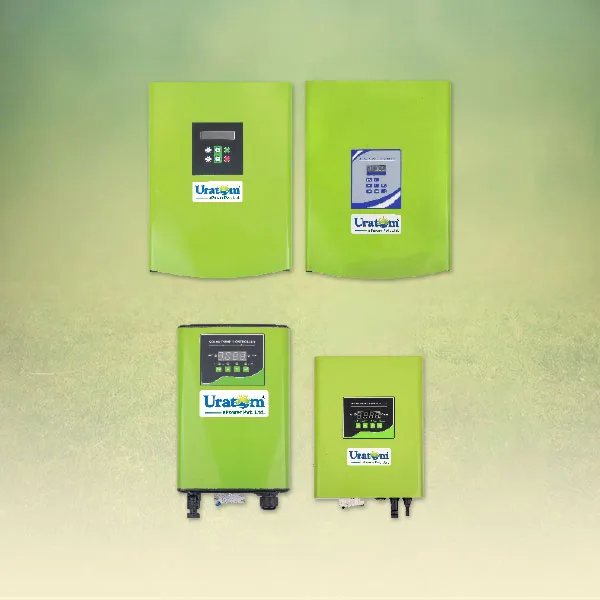

Solar Controller

Applications

Micro – Irrigation
Livestock Watering
Village Water Supply
Water Supply to Remote Homes/Agriculture

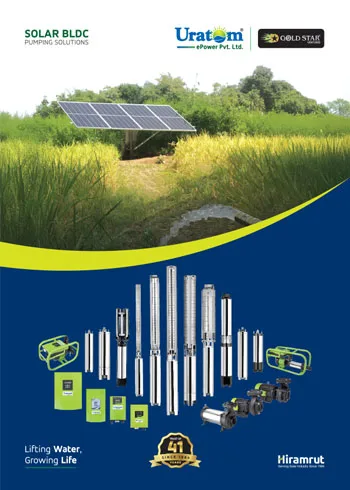

Solar Water Pump Brochure

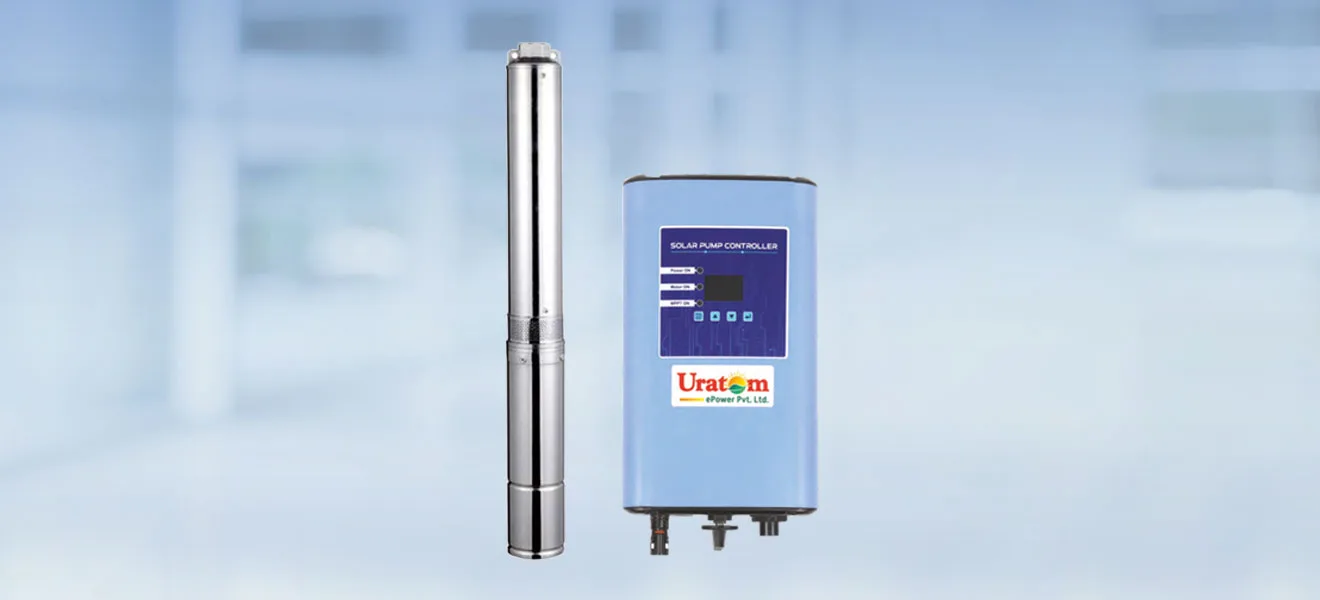

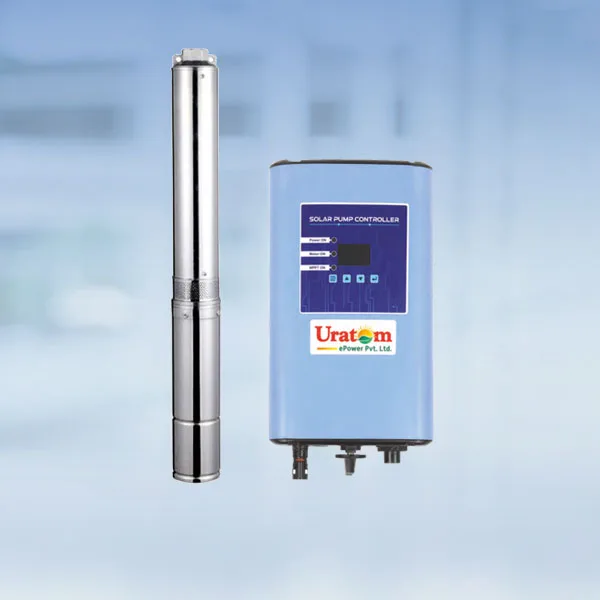

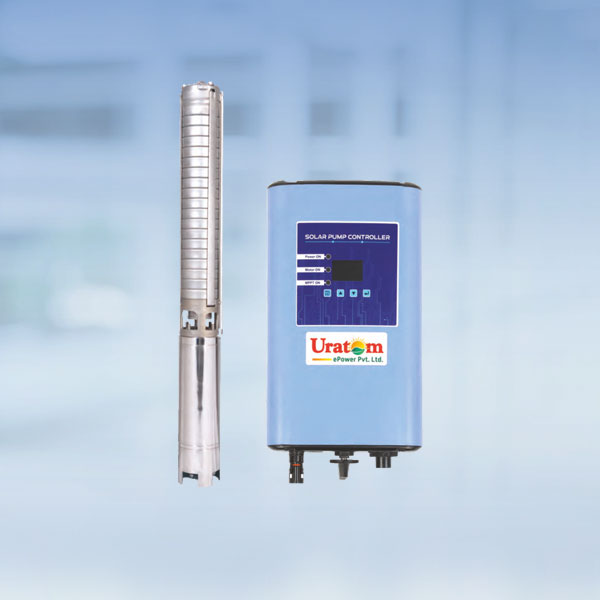

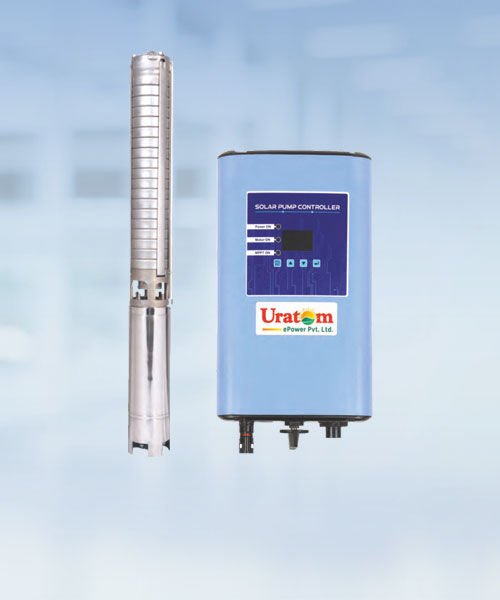

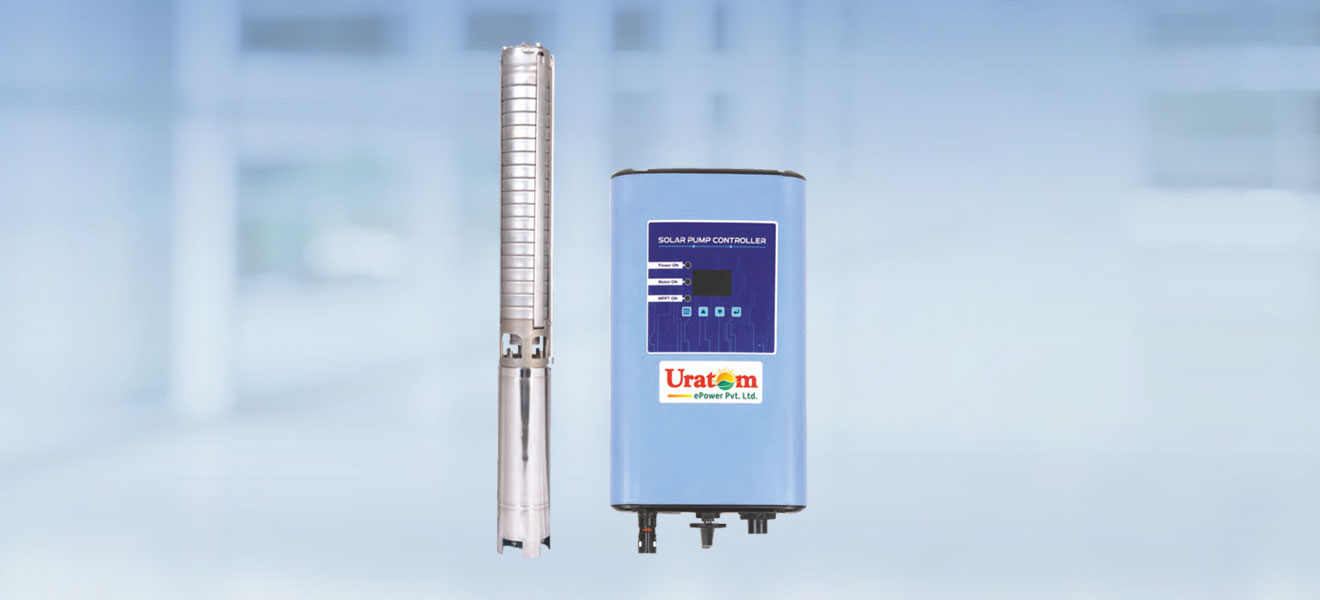

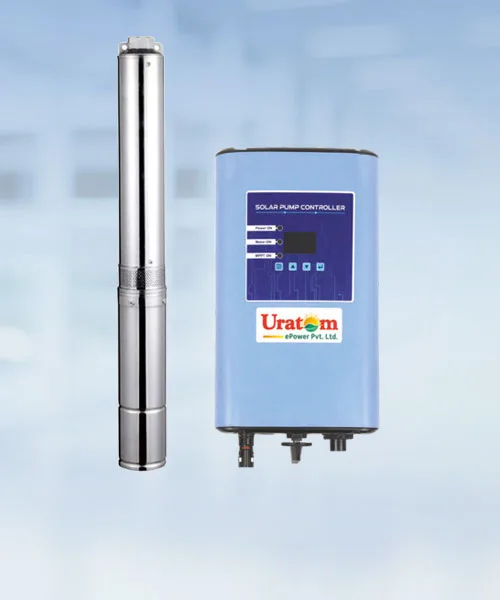

V3-3S Solar Submersible Pumps

Stainless Steel Helical Rotor Type

Uratom has a specially designed water-filled 6 pole BLDC/PMSM Stainless Steel submersible motor and Helical Rotor pump with maximum utilization of solar energy during sunny days, BLDC PMSM motor set has 30% higher energy efficiency than conventional ac submersible pump. V3-3S series is suitable for 3.5″ or above bore well dia.

18 slot 6 pole Patented design
V3-3S is a special design with Stainless Steel for longer life
Use of high-grade CRNO stamping for higher efficiency
Use of NdFeb neodymium magnet with NICKEL and marine grade coating for corrosion-free long life
NEMA motor coupling
